Wisi" EZ 44 0297, UHF antenna
|
|
|
Channels
|
21-69
|
|
Elements
|
39
|
|
Gain max.
|
15 dB
|
|
Back / front ratio
|
28 dB
|
|
Half power beam width horizontal
|
35°
|
|
Half power beam width vertical
|
42°
|
|
Wind loading horizontal
|
72.6 N
|
|
Wind loading vertical
|
114.0 N
|
|
Length
|
1090 mm
|
|
Connection
|
75Ω F-type-socket
|
|
Packing unit
|
1 piece, 39 dm³,
2.2 kg
|
|
"Wisi" EB 66, UHF antenna
Features
|
Channels
|
*21-37, 21-69, 31-47, 38-69
|
|
Elements
|
41
|
|
Gain max.
|
16.5
|
|
Back / front ratio
|
26
|
|
Half power beam width horizontal
|
29° / 29° / 29° / 29°
|
|
Half power beam width vertical
|
32° / 34° / 34° / 34°
|
|
Wind loading horizontal
|
35 N, 34 N, 34 N, 34 N
|
|
Wind loading vertical
|
75 N, 62 N, 63 N, 62 N
|
|
Length
|
2330 mm, 1940 mm, 1990 mm, 1940 mm
|
|
Connection
|
75 Ω,
F-type-socket
|
|
Packing unit
|
1 piece, 90.8 dm³,
90.8 dm³,
76.5 dm³,
64.5 dm³
(2.40 kg)
|
|
*WISI*VS128
Technical Specification
UHF 470-862 MHz
36dB adjustable
VHF 47-230 MHz
28 dB adjustable
Output level
> 98 dBμV
Power consumption
50 mA
Noise figure
> 3.5 dB
Operating voltage
24 VDC
Remote power unit
Operating voltage supplied
24 VDC
DC load max.
50mA
|
"Wisi" VX 82, MINI LINE In-house distribution amplifiers
|
Frequency range US/DS
|
5-65/
87-862 MHz
|
|
Gain DS
|
28-31 dB
|
|
Attenuator
|
0-18 dB
|
|
Equalizer
|
3-18 dB
|
|
Output level DS CENELEC, flat
|
96 dBµV
|
|
Output level DS CENELEC, 6 dB slope
|
98.5 dBµV
|
|
Output level DS EN50083-5/3.Ord
|
114 dBµV
|
|
Noise figure
|
< 8 dB
|
|
Return path amplifier US
|
28 (-2)* dB
|
|
Attenuator US
|
0-12 dB
|
|
Output level US EN50083-5/3.Ord
|
112 dBµV
|
|
RF inputs and outputs
|
F-type
|
|
Operating voltage
|
230 VAC 50/60 Hz
|
|
Power consumption
|
3.5 W
|
|
Operating temperature
|
-20°C...+55°C
|
|
Dimensions
|
163x90x47 mm
|
|
EMC
|
CE, Class A
|
|
Packing unit
|
1 piece, 1.4 dm³, 0.8 kg
|
|
Shipping package
|
10 pieces, 17.5 dm³,
8.5 kg
|
|
Wisi" VX 81, MINI LINE In-house distribution amplifier
|
Frequency range US/DS
|
5-65/
87-862 MHz
|
|
|
Gain DS
|
18-21 dB
|
|
|
Attenuator
|
0-18 dB
|
|
|
Equalizer
|
3-18 dB
|
|
|
Output level DS CENELEC, flat
|
96 dBµV
|
|
|
Output level DS CENELEC, 6 dB slope
|
98.5 dBµV
|
|
|
Output level DS EN50083-5/3.Ord
|
114 dBµV
|
|
|
Noise figure
|
< 8 dB
|
|
|
Return path amplifier US
|
20 (-2)* dB
|
|
|
Attenuator US
|
0-12 dB
|
|
|
Output level US EN50083-5/3.Ord
|
112 dBµV
|
|
|
RF inputs and outputs
|
F-type
|
|
|
Operating voltage
|
230 VAC 50/60 Hz
|
|
|
Power consumption
|
3.5 W
|
|
|
Operating temperature
|
-20°C...+55°C
|
|
|
Dimensions
|
163x90x47 mm
|
|
|
EMC
|
CE, Class A
|
|
|
Packing unit
|
1 piece, 1.4 dm³, 0.8 kg
|
|
|
Shipping package
|
10 pieces, 17.5 dm³,
8.5 kg
|
|
|
Legend
|
DS=Down Stream; US=Up Stream
|
|
|
Wisi" VX 57, Universal trunk / distribution amplifier
|
Down Stream
|
-
|
|
Frequency range
|
47/85-862 MHz*
|
|
Gain
|
2 x 38 (34**) dB
|
|
Noise figure
|
≤6.5 dB
|
|
Attenuator / Equalizer
|
0-15/0-15 dB
|
|
Interstage attenuator
|
0 / 5 / 10 dB
|
|
Interstage slope
|
0 / 6 / 9 dB
|
|
Output level CENELEC, flat
|
2 x 111 dBµV
|
|
Output level CENELEC, 6 dB slope
|
2 x 114 dBµV
|
|
Up Stream
|
-
|
|
Frequency range
|
5-30/65 MHz*
|
|
Gain
|
26 dB
|
|
Noise figure
|
≤11 dB
|
|
Attenuator / Equalizer
|
0-26/0-10 dB
|
|
Output level EN 50083-5,
|
116 dBµV
|
|
ICS
|
0 / -8 / <-45 dB
|
|
General
|
-
|
|
EMC
|
CE, Class A
|
|
Power supply
|
-
|
|
Power consumption with/without transponder
|
typ. 30 W/typ. 27.5 W
|
|
Dimensions
|
260x215x95 mm
|
|
Wisi" VX 55, Universal trunk / distribution amplifier
|
Down Stream Frequency range
|
47/85-862 MHz*
|
|
|
Gain
|
33 (29**)dB
|
|
|
Noise figure
|
≤6 dB
|
|
|
Attenuator / Equalizer
|
0-15/0-15 dB
|
|
|
Interstage attenuator
|
0 / 5 / 10 dB
|
|
|
Interstage slope
|
0 / 6 / 9 dB
|
|
|
Output level CENELEC, flat
|
1x 111 dBµV
|
|
|
Output level CENELEC, 6 dB slope
|
1x 114 dBµV
|
|
|
Up Stream
|
-
|
|
|
Frequency range
|
5-30/65 MHz*
|
|
|
Gain
|
30 dB
|
|
|
Noise figure
|
≤8 dB
|
|
|
Attenuator / Equalizer
|
0-30/0-10 dB
|
|
|
Output level EN 50083-5,
|
116 dBµV
|
|
|
ICS
|
0 / -8 / <-45 dB
|
|
|
General
|
-
|
|
|
Power supply
|
-
|
|
|
Power consumption with/without transponder
|
typ. 20.5 W/
typ. 18W
|
|
|
Dimensions
|
260x215x95 mm
|
|
|
EMC
|
CE, Class A
|
|
|
Packing unit
|
1 piece, 19 dm³,
3.6 kg
|
|
|

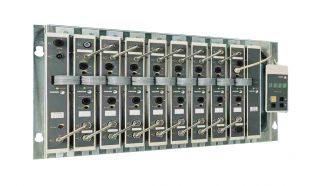

wisi- OV45D
Terrestrial- TV multi-standard channel conv. analog/digital
Conversion of one analog/ digital TV channel into range 45-862 MHz
Suitable for DVB-T
AGC for the input level range 50 - 90 dBμV analog/ 40-80 dBμV digital
Output level adjustable in the range of 74-84 dBμV analog/ 64-74 analog digital
High IF selection via two SAW filters, for adjacent channel operation at input and output
Deactivation of AGC for TV standard L.Manual gain adjustment
NMS via headend controller OV51S or headend commander OV52
|
Eight" MAX-90 / AN-6006, Digital TV Antenna
-Receive power 19dB
-Length: 1760mm
-F connector
-Europe
|
"Eight" AC-44 / AN-6001, Digital TV Antenna
Receive the power 15.5dB
Length: 1090mm
F connector
Europe
|
"Eight" MAST Amplifier
Complete mast amplification range ideal for digital TV
Models adaptable to every need (110 and 100dBuV)
Band-adjustable gainM
Very low noise factor
Interference-free, thanks to electromagnetic shielding
Very easy assembly and hook-up (F connectors included)
Water- and dust-proof box made from durable, corrosion-proof material
Accessories with power supply units and high-gain indoor amplifiers
|
Eight" AM-6210KE, Front split-amplifier
Put the power of 30dB
UHF/FM input
F connector
Europe
|
"Eight" DA86234NR, Antenna amplifiers
Put the power of 34dB
Pull
push technique
Built-in attenuator and Equalizer
Built-in test
F connector
Europe
|
"Eight" DA86228NR, Antenna amplifiers
Put the power of 28dB
Pull
push technique
Built-in attenuator and Equalizer
Built-in test
F connector
Europe
|
"Eight" AMP862AITR, Antenna amplifiers
Multi channel load
Return path (5-42MHz)
Downlink gain: 34dB, upside gain: 20dB
Adjustable gain and balance control
Aluminum casting, high-frequency radiation-proof and can be applied open
IP54 protection
|
GIF 6000+A/D-GAGOR CHANNEL CONVERSIO
The built-in AGC circuit keeps a stable output level
Enables the conversion of any input channel, in any output channel, eliminating the incompatibilities between channels
It allows output signal total disconnection
Incorporates a LED with input level information
It also offers the possibility of fine tuning the output channel frequency to disperse intermodulation products in installations with many channels
Screws and power supply cable included
|
